SMT factory Shenzhen Kevis Custom Design Electronic High Frequency PCB PCBA

Ask Lasest Price
Certification :	RoHS, ISO
Brand Name :	HUALIAN
Price :	0.04usd-1usd/pcs
Delivery Time :	5-7days
Supply Ability :	50000/Month
Model Number :	HUALIAN-PCBA185
Payment Terms :	T/T, L/C

Add to Cart

Product Details
Company Profile

SMT factory Shenzhen Kevis Custom Design Electronic High Frequency PCB PCBA

Product Description

SMT factory Shenzhen Kevis Custom Design Electronic High Frequency PCB PCBA

Shenzhen Hualian Weiyip Technology Co., Ltd. was founded in 2011, with a production workshop of 5,000 square meters and 600 employees. In 2023, the company's sales will reach 300 million yuan. The company's PCBA customers include automobile, computer, industrial control, medical, power and energy, etc. Our cooperative customers include SAGEMCOM and PEGATRON
The following is our PCB function list:

1 to 36 layers rigid pcb and 2 to 14 layers flexible and rigid flexible pcb

Blind/buried holes with sequential lamination

HDI builds microthrough-hole technology with solid copper filling through holes

· On-off and non-on-off filling in gasket technology

Heavy copper weighs up to 12 ounces. Plate thickness up to 6.5mm. Board size up to 1010X610mm.

Special materials and mixed structures

Buyers in the international market choose us not only because of our efficient production capacity, but also because we have the latest and sophisticated machinery, skilled technical team and mature supply chain.
We are committed to the ultimate pursuit of product quality and efficiency, providing highly reliable solutions for customers around the world. If you have any questions please visit our online showroom or contact us for more details.

It can be a challenge to find the optimal supplier for PCBs – meeting each and all customers’ expectations and requirements on price, quality, lead times, value-added services, and delivery. Wonderful PCB is confident that we meet every expectation for each PCB.

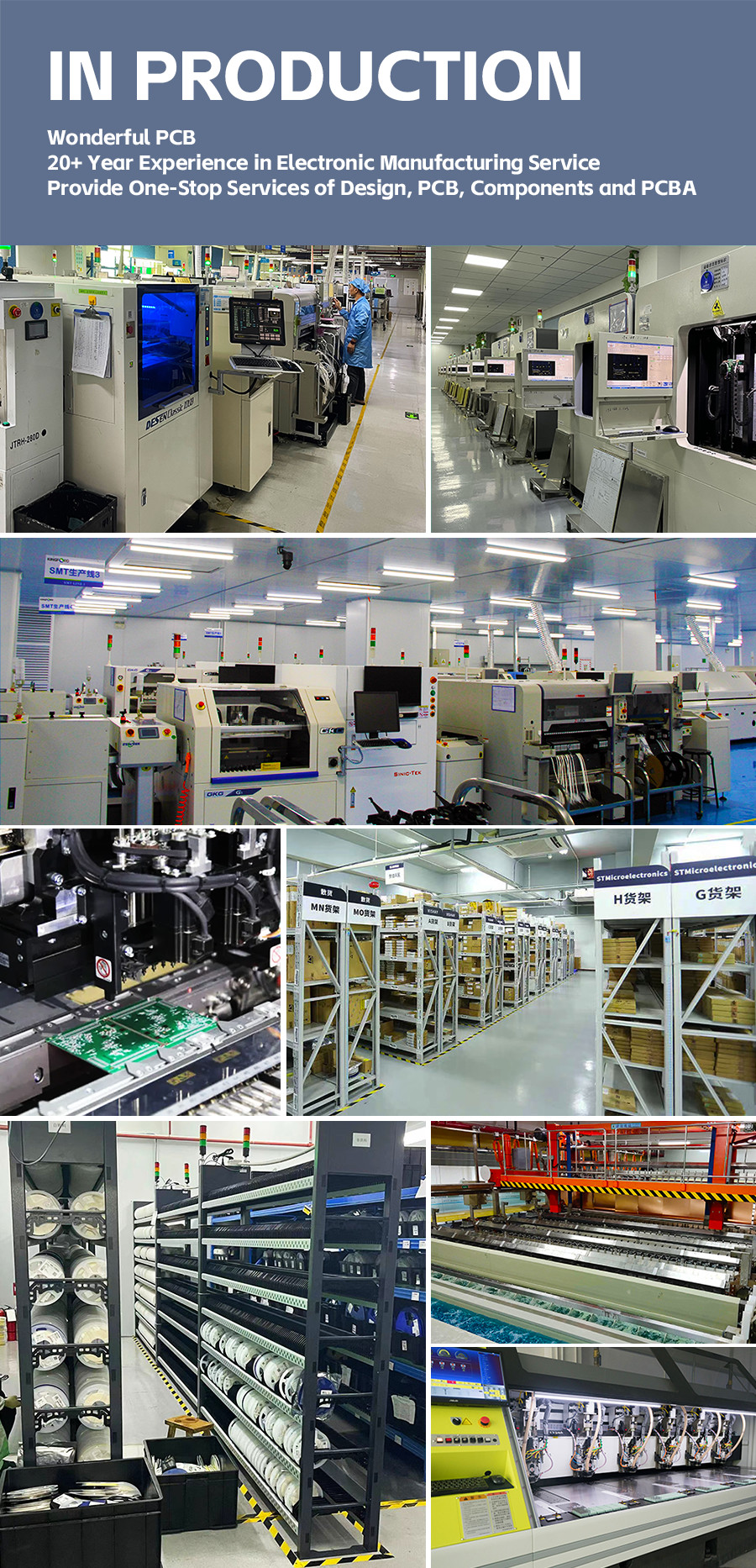

Production Flow

Our advantage
Material Technology	Our Production	General Production
Regular/Special	1.Our (TG170)FR4: high quality materials, excellent heat resistance, won't distort break in high temperature, no foaming, no burning, good performance in electrical charge, impact resistance, humidity-resistance 2.Our FR4 good performance in electrical charge, impact resistance, humidity-resistance 3.Our CEM no-burr 4.Our Rogers Good performance in high frequency 5.Our Aluminum Excellent heat dispersion	1.General FR4 High heat work 2.General CEM Expand and deform in damp conditions
Factory	We have automatic production line. The automatic production line improves the precision and efficiency of PCB producing,it makes surface brighter, cleaner and more smooth, and it helps reduce the cost.	Artificial production line
Blind/buried via board, High Density Interconnect(1+1,N+1)	Application of HDI technology reducing the thickness and the volume of PCB boards, increasing the density of 3-D wiring design.	Difficult manufacturer, high cost
Impedance	Good performance in reliability and stability of signal sending and receiving	High cost
Surface Technics	1.IMG:smooth surface, good adhesion, no oxidation under long using 2.gold plating(thick gold:1-50U"):good wear-resistance 3.HASL:better price, not easy oxidation, easy to welding, smooth surface 4.HAL: better price, not easy oxidation, easy to welding	1.IMG:high price 2.Gold plating(thick gold):high price 3.HAL:surface is not flat, not suitable for BAG packaging
Copper Via/Surface(20-25UM,0.5-60Z)	Laser holing: Min 0.1MM, Mechanical holing: Min 0.2MM	Hard to reach 0.1MM
Multilayer board(4-20 L),BGA(CPU)	BGA:high density, high performance, multifunctional, increase thermal reliability, good performance in electroheat property, MIN width/space: 3/3MIL Multilayer board:strong microporous, high reliability	Difficult manufacturer,high cost
Test	To assure quality, avoid wasting after installing and scraping, save cost, save the time of rework	Careless

SMT factory Shenzhen Kevis Custom Design Electronic High Frequency PCB PCBA

What we need:

* Gerber files of the bare PCB

* Bill of materials include: Manufacturer's part number, type of part, type of packaging,component locations listed by reference designators and quantity

* Dimensional specifications for non-standard components

* Assembly drawing, including any change notice

* Pick and Place file

* Final test procedures (if customer need us test)

FAQ

Q:What files do you use in bare pcb fabrication?

A:Gerber RS-274X,274D,Eagle and AutoCAD's DXF,DWG,genesis2000...etc.

Q:What format of Bom List you prefer?

A:We prefer Excel format which include: Components Part No.,Manufacturer,Quantity,Value info...etc.

Q:How can i know the processing about my PCBA order?

A:Each Customer will have a sale to serve you. Our working hours: 9:00AM-18:30 PM from Monday to Friday,Saturday from 9AM to 12:30 PM. We will reply your email in 2hours in our working time. And you also can contact with our sales by phone if anything urgent.

Q:How long will we get the quotation after providing pcb gerber file,completed bom list,part datasheet and PNP file?

A: The quotation will be sent in less than 2 work days, for some special components which can't find here,you can suggest us the replacement PN or you can provide to us.

Q:If all PCBAs will be tested before delivery if we provide the function testing method?

A:Yes, we ensure that each piece of PCBA will be tested before shipment, we ensure the goods we sent out are with approved quality.
