SMT factory Shenzhen Manufacturer Advanced Technology Wholesale Price PCBA

Ask Lasest Price
Certification :	RoHS, ISO
Brand Name :	HUALIAN
Price :	0.04usd-1usd/pcs
Delivery Time :	5-7days
Supply Ability :	50000/Month
Model Number :	HUALIAN-PCBA185
Payment Terms :	T/T, L/C

Add to Cart

Product Details
Company Profile

SMT factory Shenzhen Manufacturer Advanced Technology Wholesale Price PCBA

Product Description

SMT factory Shenzhen Manufacturer Advanced Technology Wholesale Price PCBA

Shenzhen Hualian Weiyip Technology Co., Ltd. was founded in 2011, with a production workshop of 5,000 square meters and 600 employees. In 2023, the company's sales will reach 300 million yuan. The company's PCBA customers include automobile, computer, industrial control, medical, power and energy, etc. Our cooperative customers include SAGEMCOM and PEGATRON
The following is our PCB function list:

Buyers in the international market choose us not only because of our efficient production capacity, but also because we have the latest and sophisticated machinery, skilled technical team and mature supply chain.
We are committed to the ultimate pursuit of product quality and efficiency, providing highly reliable solutions for customers around the world. If you have any questions please visit our online showroom or contact us for more details.

Item No.: YF-029E Dual lvds or Dual eDP

Product Name: All-in-one Android OS 11 Linux Debian 10 RJ45 Blue-tooth RS232 TTL IIC-Touch panel Rockchip RK3568 Android Embedded Motherboard Mainboard Driver Board Controller Board PCBA for Digital-signage Smart Home Advertising Advertisment Machine Self-service Terminal Machine.
Small Size embedded Android OS 11 13 Linux Debian 10 2GB+16GB Rockchip RK3568 Android Inudstial developement Motherboard

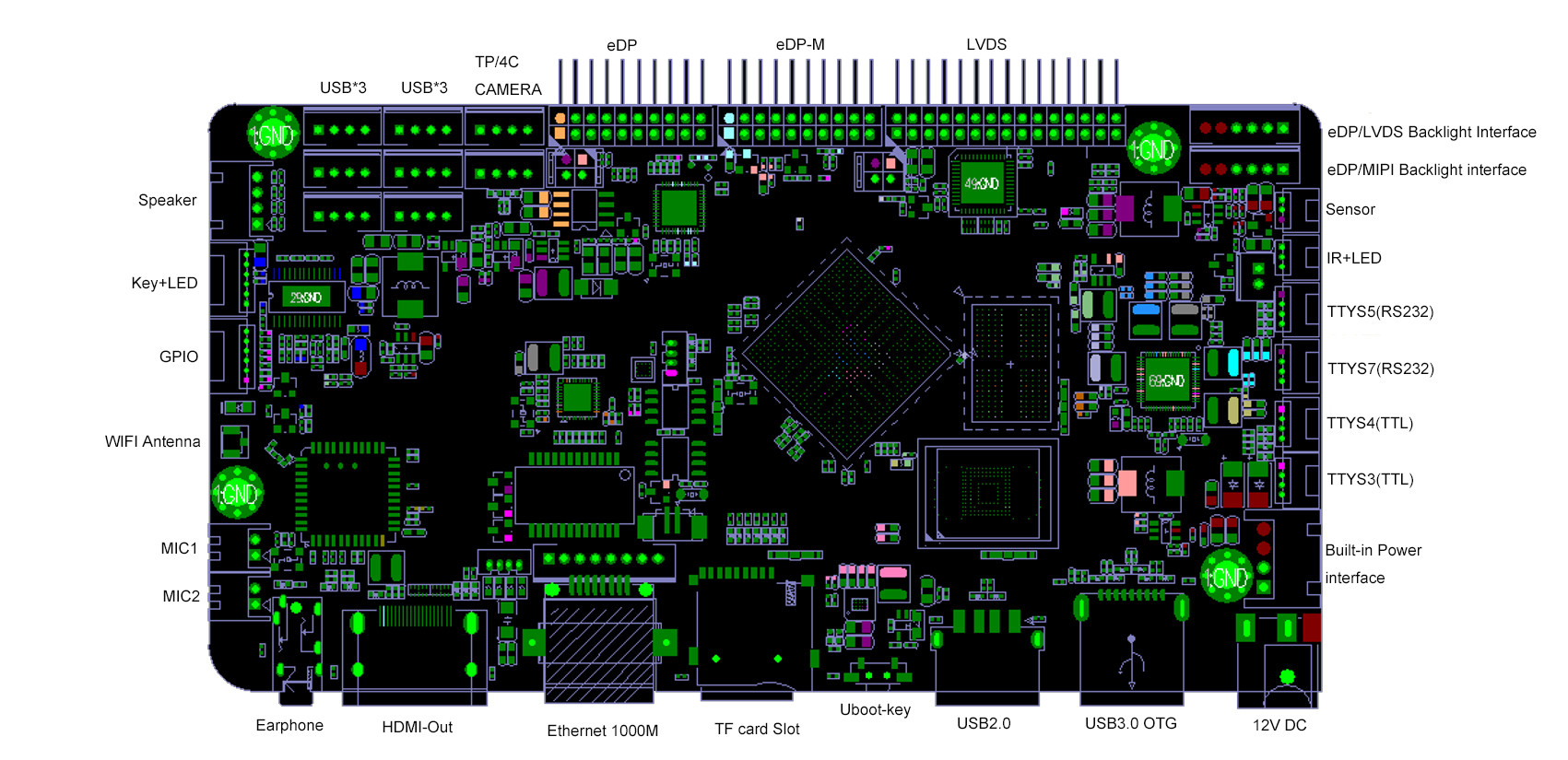

Android Motherboard Main Interface
 * LVDS output x 2 (up to 1920*1080)
 * eDP output x 1 (up to 1920*1080)
 * Mipi output x 1 (up to 1920*1080)
 * HDMI output x 1 (up to 3840*2160)
 * USB3.0 x 1 ( for data input and output)
 * USB OTG x 1 (image updating through OTG, )
 * USB2.0 built-in x 4 way
 * TF card Slot
 * TTLYS3 (for TTL)
 * TTLYS4 (for TTL)
 * TTLSY7 (for TTL, Used by RD)
 * GPIO x 4
 * I2C (for I2C TP)
 * POE function (optional)
 * RJ45 (up to 1000M)
 * Power Jack (12V DC power supply)
 * Built-in power interface
 * Backlight control interface
 * Body Sensor interface

 Product Overview
The YF-029E board uses Rockchip RK3568 high-performance, low-power
 quad-core application processor, equipped with Android11.0 system, with a main
 frequency of up to 2.0 GHz. The embedded 3D GPU makes RK3568 fully
 compatible with OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1. The special
 2D hardware engine will maximize display performance and provide very smooth
 operation. The built-in NPU supports 1.0T computing power, supports almost all
 formats of H.264 decoder 4K@60fps, H.265 decoder 4K@60fps, and also supports
 H.264/H.265 encoder 1080p@60fps, high-quality JPEG encoder /decoder.
 Integrate multi-channel LVDS eDP MIPI, 1000M Ethernet, HDMI IN/OUT, WIFI, and
 BT power amplifier into one, support decoding of most popular video and picture
 formats, dual 2way x eDP/ MIPI support 2K level Output, compatible with driving
 various TFT LCD displays screen, simplifying the overall system design.

 Key Features
 - High integration level: Integrated USB/ LVDS/ eDP/Gigabit Ethernet/ WIFI/ BT/
 HDMI-out/HDMI-in /TF card expansion/microphone and other functions simplify
 the overall machine design and make the overall machine design more beautiful.
 - High definition: Supports 1080P/H.265 (4K2K) video decoding and various
 LVDS/eDP/MIPI Signal LCD displays.
 - Support HDMI-in and HDMI-out
 - Comes with built-in power amplifier: Supports dual-channel 8R/2W power
 amplifier.
 - Rich interfaces: Supports USB (USB3.0x1way, and USB2.0x9way)/TTL x 2way/
 RS232 x 2way/ GPIO/ ADC interface expansion, which can meet the mainstream
 peripherals on the market.
 - Full-featured: Supports horizontal and vertical screen playback, video split
 screen, rolling subtitles, timer switch, USB data import and other functions.
 - Convenient management: Humanized playlist creation software facilitates
 advertising playback management and control. Playback log makes it easy to
 understand the playback status.
 	 			CPU
 			Rockchip RK3568 UP to 2GHz

 			GPU
 			Mali-G52-2EE High perormance GPU

 			NPU
 			NPU support up to 1.0T

 			RAM
 			LPDDR4X/LPDDR4 2GB standard, optional 4GB, 8GB,16GB

 			ROM
 			EMMC 16G standard, optional 32GB 64GB, up to 128GB

 			Decoding Resolution
 			Support 1080P/H.265(4K2K)

 			O.S.
 			Android11.0

 			Play Mode
 			Supports multiple playback modes such as loop, timing, and insert playback

 			Network
 			Gigabit Ethernet, supporting WiFi /BT, wireless peripheral expansion

 			USB2.0 interface
 			4 way USB HOST

 			USB 3.0 interface
 			Standard USB 3.0 x 1way, USB 3.0 OTG x 1way

 			Serial Ports
 			TTL x 3way,Debug x 1way,RS232 x 1way

 			Ethernet
 			RJ45 x 1way,10M/1000M, Adaptive Ethernet

 			HDMI Output
 			UP to 3840*2160

 			EDP Output
 			EDP x 1way (up to 1920*1080)

 			LVDS Output
 			LVDS x1way (up to 1920*1080)

 			MIPI Output
 			MIPI x 1way (up to 1920*1080)

 			Audio Output
 			Left and right channel Output 8R/2W speakers

 			RTC
 			Support RTC (Real Time Clock)

 			Hardware-Watch-dog
 			Support

 			Timing-on/off
 			Support

 			Dual Panel different display
 			Support

 			O.S Updating
 			Updating through TF card or Computer

 			Special Function
 			Updating Resolution firmware through USB



Product Parameters

What we need:

* Gerber files of the bare PCB

* Bill of materials include: Manufacturer's part number, type of part, type of packaging,component locations listed by reference designators and quantity

* Dimensional specifications for non-standard components

* Assembly drawing, including any change notice

* Pick and Place file

* Final test procedures (if customer need us test)

FAQ

Q:What files do you use in bare pcb fabrication?

A:Gerber RS-274X,274D,Eagle and AutoCAD's DXF,DWG,genesis2000...etc.

Q:What format of Bom List you prefer?

A:We prefer Excel format which include: Components Part No.,Manufacturer,Quantity,Value info...etc.

Q:How can i know the processing about my PCBA order?

A:Each Customer will have a sale to serve you. Our working hours: 9:00AM-18:30 PM from Monday to Friday,Saturday from 9AM to 12:30 PM. We will reply your email in 2hours in our working time. And you also can contact with our sales by phone if anything urgent.

Q:How long will we get the quotation after providing pcb gerber file,completed bom list,part datasheet and PNP file?

A: The quotation will be sent in less than 2 work days, for some special components which can't find here,you can suggest us the replacement PN or you can provide to us.

Q:If all PCBAs will be tested before delivery if we provide the function testing method?

A:Yes, we ensure that each piece of PCBA will be tested before shipment, we ensure the goods we sent out are with approved quality.

SMT factory Shenzhen Manufacturer Advanced Technology Wholesale Price PCBA
