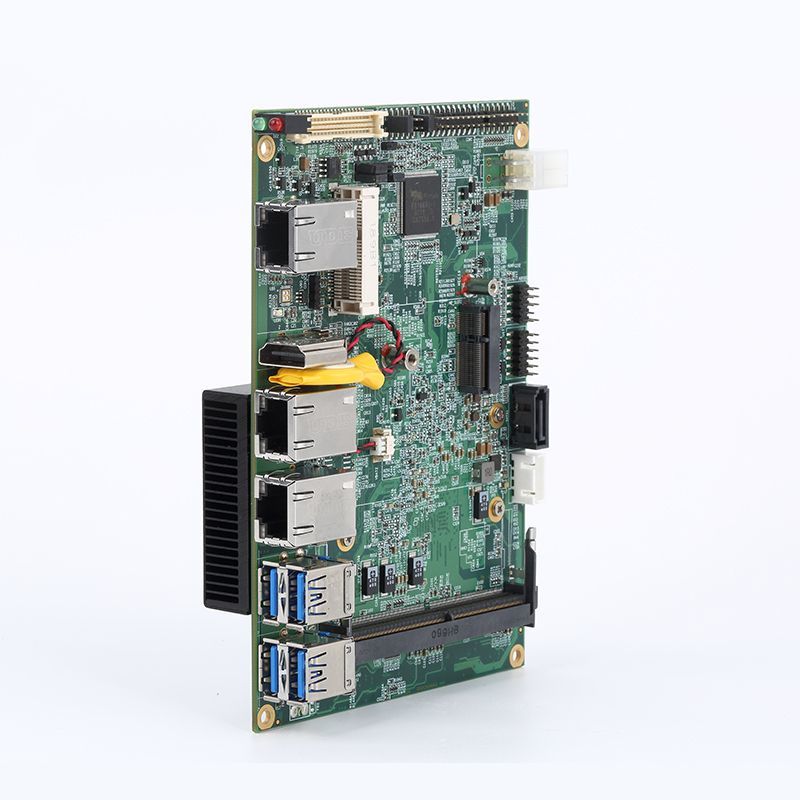

Intel® Elkhart Lake Series SOC, power consumption: 4.5-12W
For PCB model customization, the user must upload a compressed package of PCB file (Gerber file is the best type) at the end of the customization For new model customization, the user must upload a compressed package of PCB file (Gerber file is the best type) at the end of the customization page, if there are other board instructions (including but not limited to: PDF, WORD, EXCEL, TXT, JPG, BMP), please also enter the compressed package, so that we can match your board 100%.
Intel® Elkhart Lake Series SOC, power consumption: 4.5-12W
» Intel® Elkhart Lake Series SOC, power consumption: 4.5-12W
» SO-DIMM DDR4 memory (voltage 1.2V, up to 16G support) Maximum frequency 3200MHz
» Intel 11th generation display core, support DX12, MPEG2, H.264, JPEG/MJPEG, H.265 (HEVC)
» Support eDP 1.3, HDMI 1.4A, LVDS (18/24 bit single channel or dual channel)
» Support 3 10/100/1000Mbit Ethernet, SATA, MSATA
» USB 2.0 and USB 3.0 interface, RS232/422/485 serial port, GPIO interface
» The BIOS supports mouse operation
» Voltage: +9V~+24V, +12V is recommended
